Database Models¶

This document describes the database model structure for the Coalition Builder application.

Model Overview¶

The Coalition Builder application uses Django models to represent the core entities:

Campaigns: Policy initiatives that can receive endorsements
Stakeholders: Individuals and organizations who can endorse campaigns
Legislators: Elected officials who represent districts
Endorsements: The relationship between stakeholders and campaigns
Regions: Geographic boundaries for organizing stakeholders and legislators
Content: Website content management (themes, homepage, content blocks, images)

Model Diagrams¶

Coalition Project Models¶

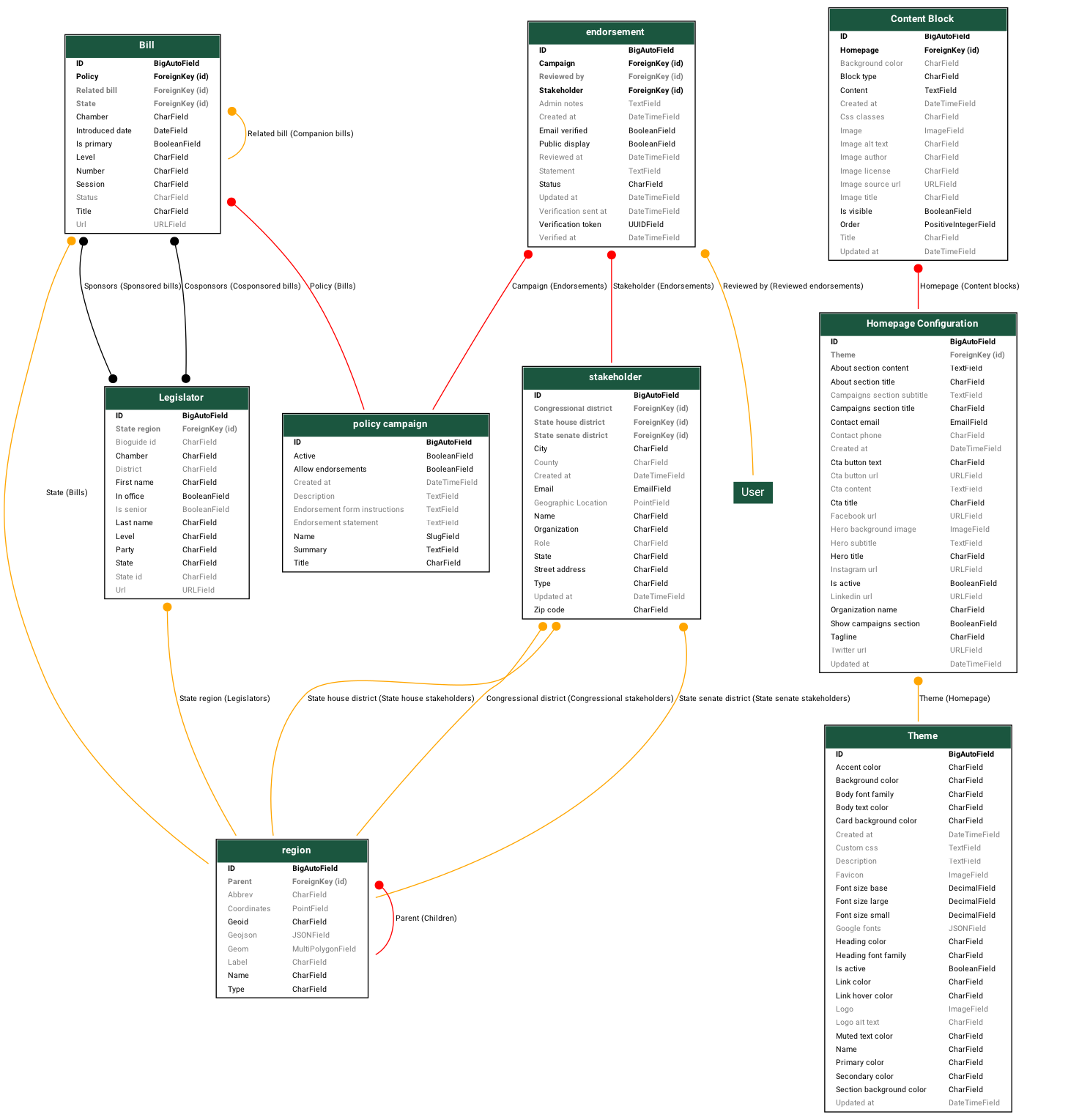

Coalition Models

This diagram shows only the Coalition Builder project models, excluding Django built-in models and third-party dependencies for clarity. The diagram includes:

Policy Campaigns & Bills: Campaign management with related legislation
Stakeholders: Individuals and organizations with geographic data
Endorsements: Relationships between stakeholders and campaigns
Legislators: Elected officials with district assignments
Regions: Geographic boundaries (States, Counties, Districts)
Content Management: Themes, homepage configuration, content blocks, and centralized image management

Key Relationships¶

Campaign → Endorsement → Stakeholder¶

Campaigns can have many endorsements
Each endorsement links one stakeholder to one campaign
Stakeholders can endorse multiple campaigns

Stakeholder → Region¶

Stakeholders belong to geographic regions
Regions help organize stakeholders by location

Legislator → Region¶

Legislators represent specific districts/regions
This enables targeting legislators based on stakeholder locations

Content Management¶

HomePage contains ContentBlocks for flexible page layout
Theme defines the visual styling across the application
Image model provides centralized image management with attribution and metadata
ContentBlocks and other models reference Images through foreign keys
Both support customization without code changes

Model Details¶

Campaign¶

Purpose: Represents policy initiatives
Key Fields: title, summary, description, endorsement settings
Relationships: Has many endorsements

Stakeholder¶

Purpose: Individuals and organizations who can provide endorsements
Key Fields: name, organization, email, type, location data
Relationships: Belongs to region, has many endorsements

Endorsement¶

Purpose: Links stakeholders to campaigns they support
Key Fields: statement, public_display flag
Relationships: Belongs to campaign and stakeholder

Legislator¶

Purpose: Elected officials for targeting and reference
Key Fields: name, chamber, party, district, contact info
Relationships: Belongs to region

Region¶

Purpose: Geographic organization for stakeholders and legislators
Key Fields: name, state, boundaries
Relationships: Has many stakeholders and legislators

Graph Generation¶

These diagrams are generated automatically using Django Extensions:

# Generate coalition project models only
poetry run python manage.py graph_models campaigns legislators stakeholders endorsements regions content core \
  --output docs/architecture/models.png \
  --layout dot --theme django2018 --verbose-names --color-code-deletions --pydot

# Generate DOT file for programmatic access
poetry run python manage.py graph_models campaigns legislators stakeholders endorsements regions content core \
  --output docs/architecture/models.dot \
  --dot --theme django2018 --verbose-names --color-code-deletions

The graphs use color coding for deletion relationships:

Red: CASCADE (deleting parent deletes children)
Orange: SET_NULL (deleting parent sets foreign key to null)
Green: SET_DEFAULT (deleting parent sets foreign key to default)
Blue: PROTECT (prevents deletion if children exist)
Grey: DO_NOTHING (no automatic action)
